PFM 9.2 GYR

Rotor Matching System

Pro-Cut 9.2GYR Product Details

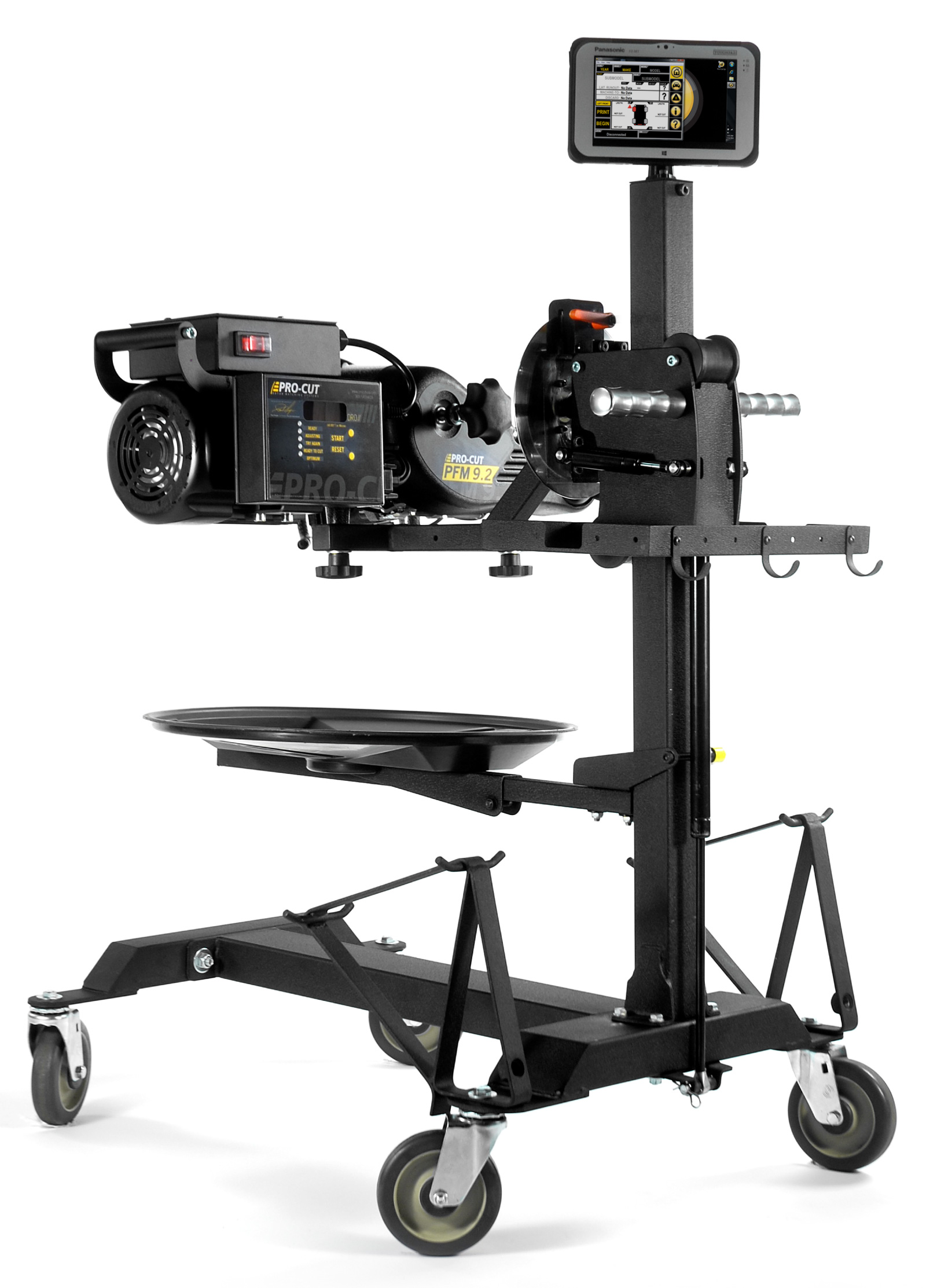

Pro-Cut has taken the industry-standard PFM 9.2 on-car brake lathe and brought it into the information age. The PFM 9.2 GYR directs the technician to make in-spec repairs and captures the finished metrics (rotor thickness and run-out) of every rotor machined! Finished results are automatically saved to an on-line database and can be printed for customer and/or warranty reimbursement. The GYR System provides management with the means to set and successfully manage a single, profitable policy for brake repair.

9.2GYR Key Features How the 9.2GYR Works

All of the features of the 9.2G plus:

  1. Captures VIN number of every vehicle serviced.
  2. Directs the technician to make in-spec repairs every time.
  3. Automatically captures finished dimensions (thickness and run-out) of every rotor serviced.
  4. Provides customer-friendly print-outs summarizing each repair.
  5. Data from each brake job automatically saved to on-line database for easy reference.
  6. Built-in business center allows management to track lathe use and profitability.
  1. Technician scans vehicle, VIN number captured and rotor specs loaded on netbook.
  2. GYR application directs the technician to stay within vehicle specifications.
  3. Data is saved on netbook computer and on-line. Results can also be printed out.
  4. A GYR brake job is still 9 minutes / rotor! Increased quality and consistency with no loss in efficiency!

9.2GYR Specifications:

$18,180

LIST PRICE BASED ON: 5 Adapter Package

1 YEAR WARRANTY - PARTS AND LABOR

Maximum Rotor Thickness: 1.75" Carriage Speed: 0.005" / rev.
Minimum Rotor Thickness: 0.2" Motor: 1.00 HP
Maximum Rotor Diameter: 17.2" Weight: 90 lbs.
Minimum Rotor Diameter: 4" Electrical Supply: 120v / 1ph / 60hz
Maximum Depth of Cut: 0.020" / Side Shipping Weight: 200 lbs.
Spindle Speed: 123 RPM

PFM 9.2 Options:

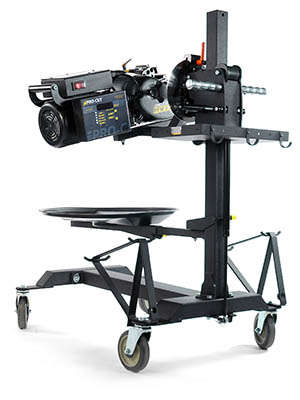

ProCut 9.2DRO Rotor Matching System

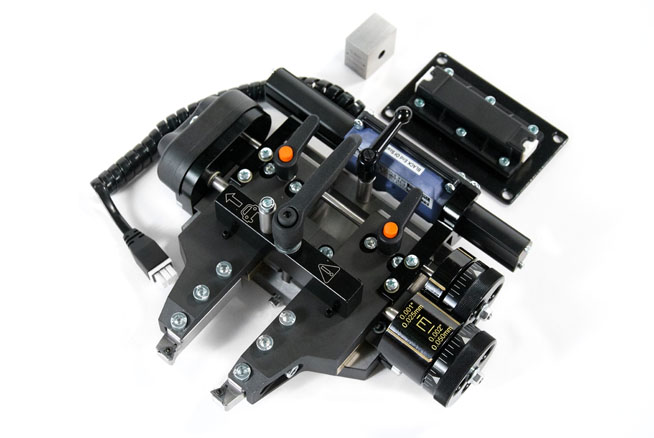

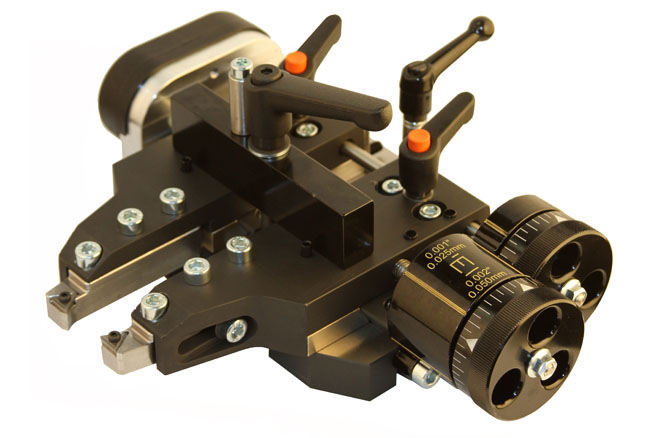

NEW DRO (Digital Run-Out) “Live”! Every new PFM 9.2 now comes with a precision matched on-board rate sensor and a “Live” digital run-out display to increase accuracy and help verify that you get a “Perfect Brake Job. Every Time!” DRO also includes ROI tracking capability to validate your investment. Also included is out exclusive Speed-Lock cutting head with “all hand lever” locking for speed, accuracy and smoother cuts.

LIST PRICE: $10,895

LIST PRICE BASED ON: 5 Adapter Package

1 YEAR WARRANTY - PARTS AND LABOR

ProCut 9.2G Rotor Matching System

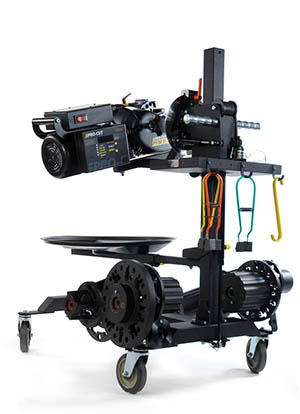

The 9.2G takes all the great features of our award winning PFM 9.2 to the next level with a rugged fully adjustable 4 wheeled trolley , rotary dial cutting head, and our most advanced PFM computer. Designed to not only give your increased speed and accuracy, but with the added flexibility to upgrade at any time to the full GYR Validated Brake System. Trolley and cutting head improvements allow better access on a wider variety of lifts and rotor types. Also included is our exclusive Speed-Lock cutting head with “all hand lever” locking for speed, accuracy, and smoother cuts.

LIST PRICE: $13,395

LIST PRICE BASED ON: 5 Adapter Package

1 YEAR WARRANTY - PARTS AND LABOR
