Pro-Cut WARTHOG Product Details

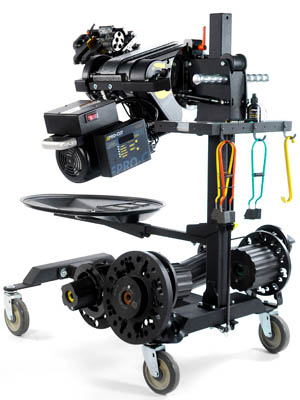

The Pro-Cut Warthog Rotor Matching System is one rugged machine. Direct drive PTO with 98% more torque than our standard models. Massive Main Spindle Roller Bearings for stability & strength. Speed-Lock Cutting Head with hardened tool steel cutting arms cut cast iron with ease. Our commercial duty unit for larger vehicles and high volume shops.

WARTHOG Key Features How the WARTHOG Works

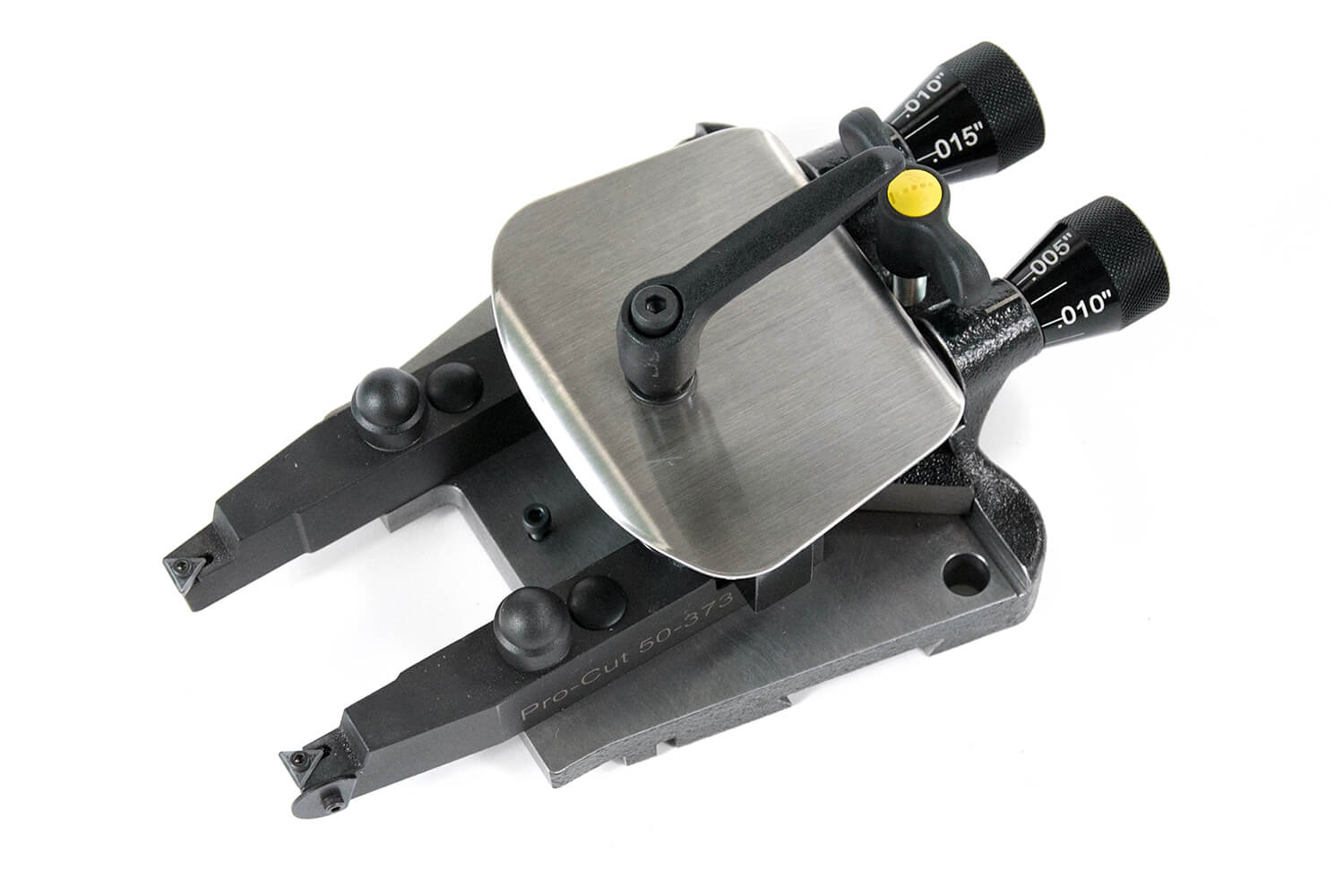

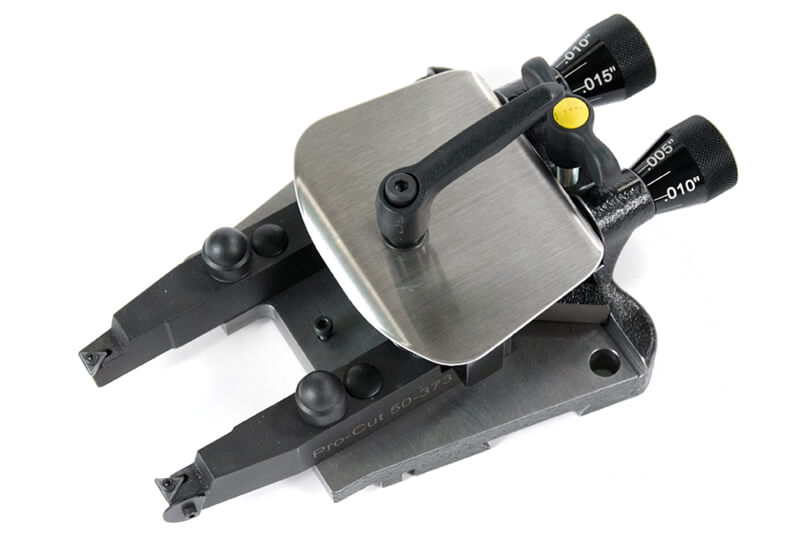

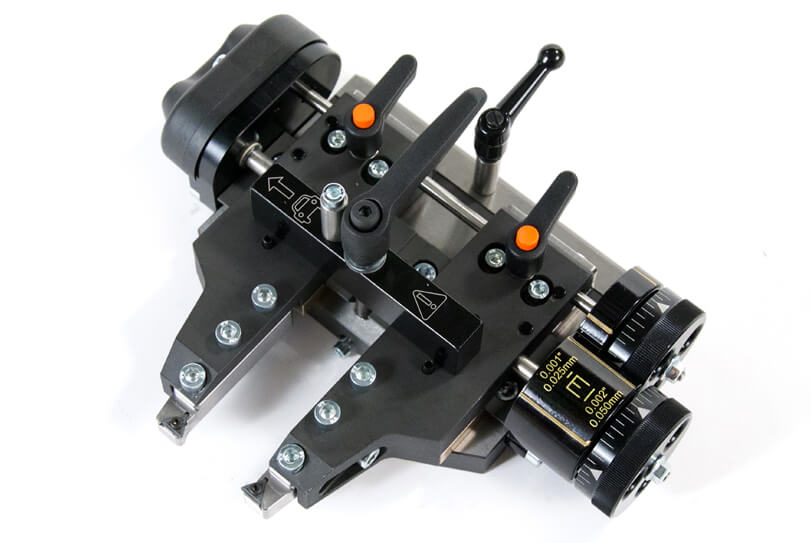

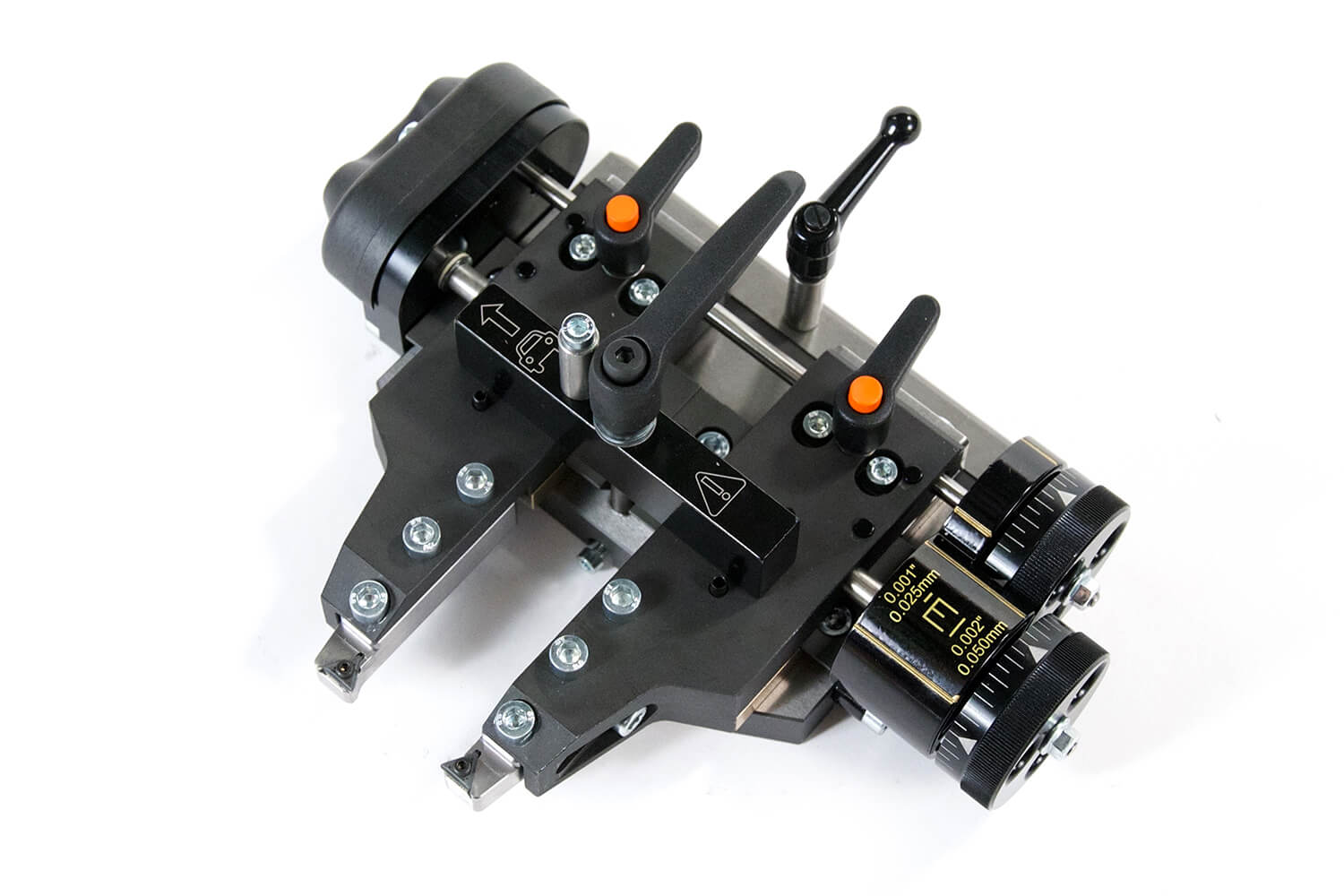

  1. DRO digital display computer and Speed-lock cutting head with twin hole tool arms.
  2. Huge body casting with increased mass and rigidity provide extra smooth finishes.
  3. Direct Drive PTO system with 98% more start up torque than our other models for all wheel drive and big axles.
  4. Fully adjustable carriage style trolley for drive-on racks or off the floor with jack stands.
  1. Tech installs adapter to vehicle, then lathe to adapter by hand tightening with draw bar knob.
  2. Tech turns on lathe and presses one button to compensate for lateral run-out.
  3. Tech centers cutting head over rotor and locks down cutting head with Speed-Lock lever, sets depth of cut and sets stop cam.
  4. Tech depresses clutch, setting cut in motion.
  5. When cut is complete, removes lathe and adapter.

Specifications:

$16,400

LIST PRICE BASED ON: 6 Adapter Package

$16,900 list price for 8 adapter package

2 YEAR WARRANTY - PARTS AND LABOR

Maximum Rotor Thickness: 1.75" Motor: 1.0 hp
Minimum Rotor Thickness: 0.2" Weight: 108 lbs
Maximum Rotor Diameter: 17.6" Shipping Weight: 240 lbs.
Minimum Rotor Diameter: 4" Electrical Supply: 110v / 1ph / 60hz
Maximum Depth of Cut: 0.020" / Side Feed Distance: 6.7" (7.5" Opt.)
Spindle Speed: 115 RPM Start-up Torque: 73 ft. lbs.
Carriage Speed: 0.005" / rev Working Height Range: 21"-43"
